Figure 4—figure supplement 7.

ID: ZDB-IMAGE-201012-66
Publication: Inaba et al., 2020 - Keratins and Plakin family cytolinker proteins control the length of epithelial microridge protrusions
All Figures: Figures for Inaba et al., 2020


Figure Caption

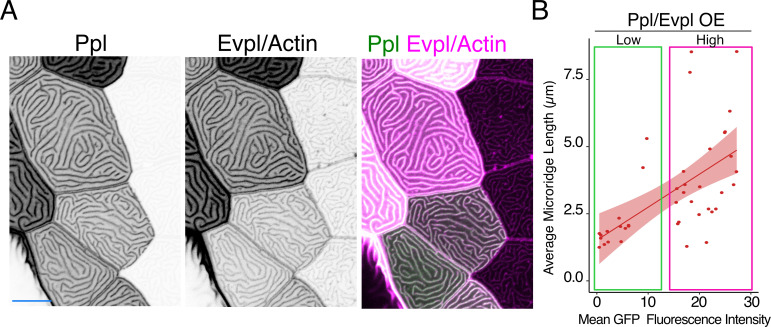

Figure 4—figure supplement 7. Evpl and Ppl dictate microridge length.

(A) Images of periderm cells expressing Evpl-mRuby[BAC], Ppl-GFP[BAC], and Lifeact-mRuby at 48hpf. Image is a zoomed out and rotated version of the image used in Figure 4C. Black-and-white images were inverted so that high-intensity fluorescence appears black and low-intensity fluorescence is white. (B) Scatter plot of average microridge length versus mean GFP fluorescence intensity in periderm cells overexpressing Evpl-mRuby[BAC] and Ppl-GFP[BAC]. Cells were divided into high and low fluorescence intensity groups, as indicated, and used in analysis shown in Figure 4D. n = 41 cells from five fish. Scale bar: 10 µm.
