Fig. 7

ID

ZDB-IMAGE-260427-95

Genes

Publication

Lardennois et al., 2026 - Two distinct modes of Vgll4-mediated Tead regulation control organ size in zebrafish

All Figures

Figures for Lardennois et al., 2026


Figure Caption

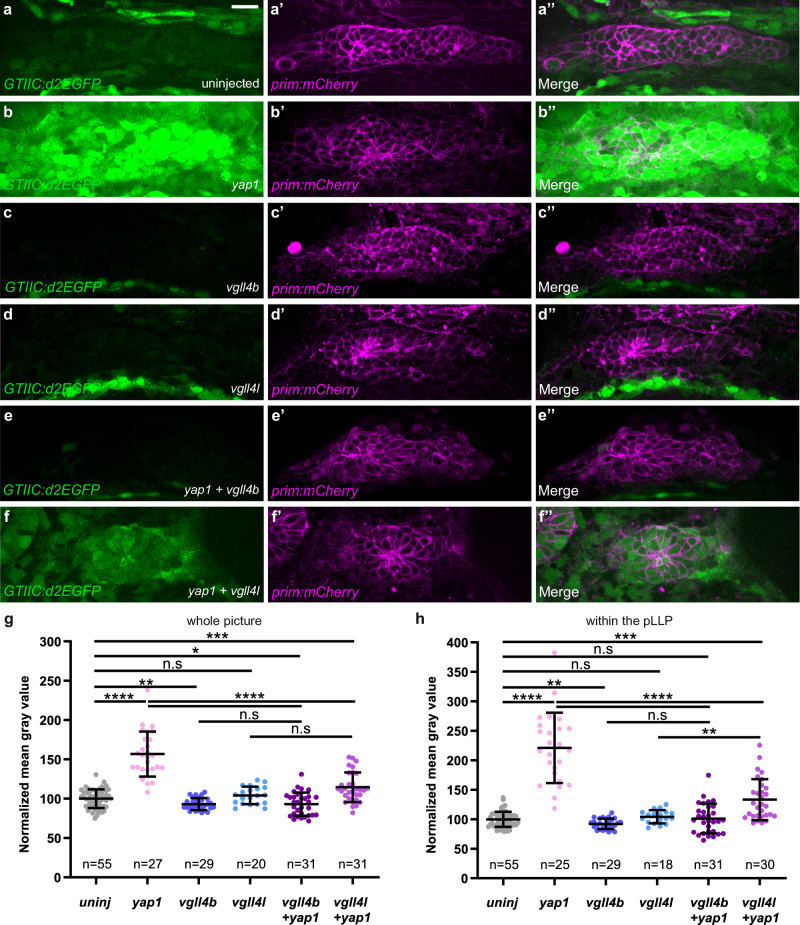

Fig. 7 Vgll4b suppresses Yap1-Tead activity more efficiently than Vgll4l in the pLLP.

a–f” Single planes confocal images showing the expression of GTIIC:d2EGFP in the pLLP of 20 hpf embryos, uninjected (a) or injected with tBFP-yap1 (b), tRFP-vgll4b (c), vgll4l (d), tBFP-yap1 and tRFP-vgll4b (e), tBFP-yap1 and vgll4l (f) mRNA. The prim-mCherry transgene is used to visualize the pLLP (a’–f’). Merged images of the two channels are shown in (a”–f”). Quantifications of the mean intensity of GTIIC:d2EGFP measured on the average Z-stack projection of the whole image (g) or on a single plane within the pLLP in the same embryos (h) (N ≥ 1 independent replicates). Data are presented as mean ± SD. Unpaired t-tests (Mann–Whitney) were conducted. Scale bar: 20 μm (a–f”).

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Commun Biol
