Figure 4
- ID
- ZDB-IMAGE-260530-173
- Publication
- Sun et al., 2026 - Functional and Genetic Analyses Unveil the Implication of hoxa4a in Zebrafish Craniofacial Development
- All Figures
- Figures for Sun et al., 2026
|
Figure Caption
Figure 4

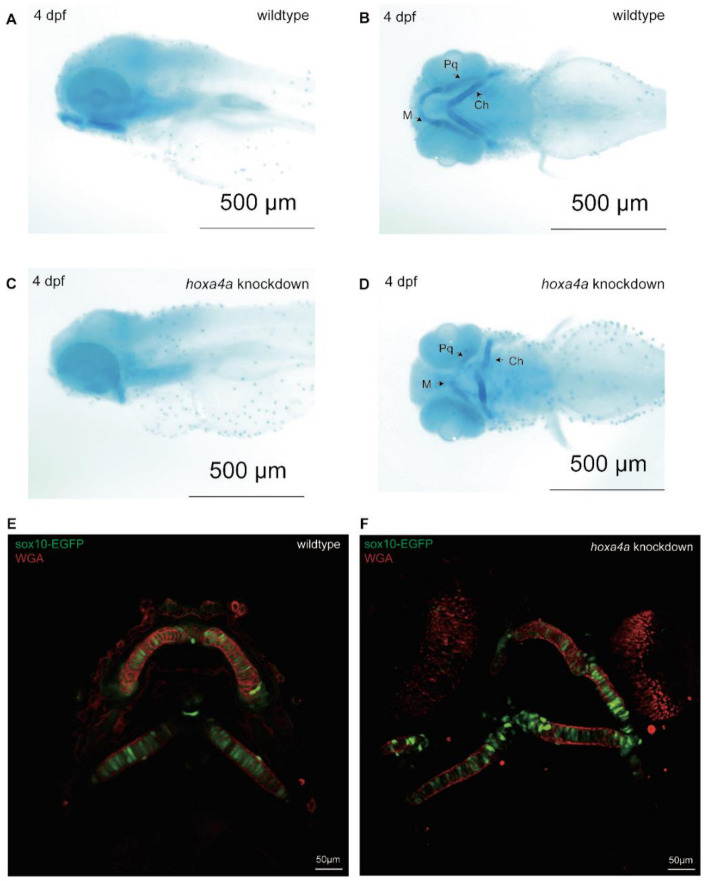

Phenotypic effects of hoxa4a knockdown demonstrated through Alcian blue/WGA staining. (A,B) Wild-type larvae stained with Alcian blue display regular pharyngeal cartilages. (C,D) By contrast, hoxa4a knockdown results in misshapen Meckel’s and palatoquadrate elements. (E) WGA reveals well-ordered, morphologically normal chondrocytes in controls. (F) Knockdown embryos instead show distorted cartilages and irregular chondrocyte packing.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ J Dev Biol
