FIGURE

Fig. 7

ID

ZDB-FIG-051214-8

Publication

Jin et al., 2005 - Cellular and molecular analyses of vascular tube and lumen formation in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 7

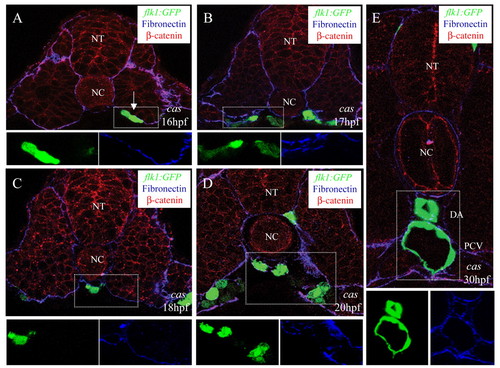

Angioblast migration in endodermless embryos. Transverse sections of endodermless embryos Tg(flk1:EGFP)^s843;cas mutants visualized for GFP (green), fibronectin (blue), and ß-catenin (red). The GFP (green) and fibronectin (blue) signals of the outlined areas are shown separately (A-E). The sections shown are at the level of the 6th (A,B), 10th (C), 14th (D) and 18th (E) somites. White arrow in A shows a cluster of angioblasts exiting the LPM. Despite the absence of endoderm, angioblasts migrate to the midline. NT, neural tube; NC, notochord; DA, dorsal aorta; PCV, posterior cardinal vein.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
