Fig. 3
Fig. 3

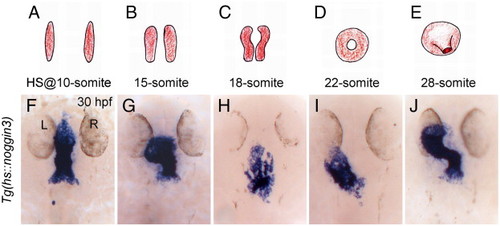

Ectopic noggin3 expression prior to the 22-somite stage affects normal cardiac jogging. (A–E) Schematic depiction of the bilateral cardiac fields during heart tube formation at the indicated stages corresponding to the stage when embryos were heat-shocked. (F–J) Induction of noggin3 in Tg(hs::noggin3) embryos by a heat-shock at the 10-somite stage (F), 15-somite stage (G), 18-somite stage (H), 22-somite stage (I) or 28-somite stage (J). All are dorsal views with anterior to the top of the panel showing cmlc2 expression at 26–30 hpf. L, left; R, right. |
Expression Data
| Gene: | |
|---|---|
| Fish: | |
| Condition: | |
| Anatomical Term: | |
| Stage: | Prim-15 |
Expression Detail
Antibody Labeling
Phenotype Data
| Fish: | |
|---|---|
| Condition: | |
| Observed In: | |
| Stage: | Prim-15 |
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Biology, 305(2), Chocron, S., Verhoeven, M.C., Rentzsch, F., Hammerschmidt, M., and Bakkers, J., Zebrafish Bmp4 regulates left-right asymmetry at two distinct developmental time points, 577-588, Copyright (2007) with permission from Elsevier. Full text @ Dev. Biol.
