Fig. 16

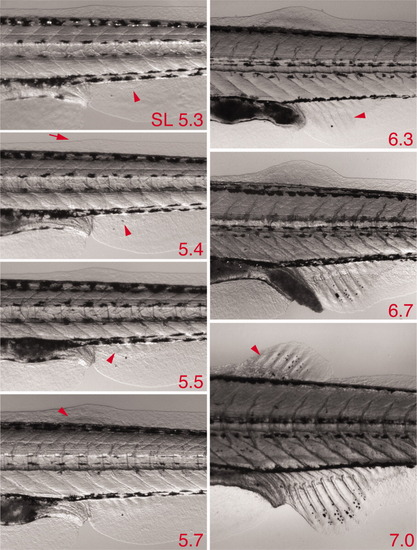

Early dorsal and anal fin development. Shown is a single individual (standard length [SL] at lower right of each panel). Arrowheads: 5.2, anal fin condensation; 5.4, melanophore (arrow, bulge in fin fold presages dorsal fin condensation); 5.5, condensing anal fin radials; 5.7, dorsal fin condensation; 6.3, anal fin rays; 7.0, dorsal fin rays. Images shown are at decreasing magnifications. Scale bars = 5.3 and 7.0, 250 μm. [Color figure can be viewed in the online issue, which is available at www.interscience.wiley.com.] |
