Fig. 5

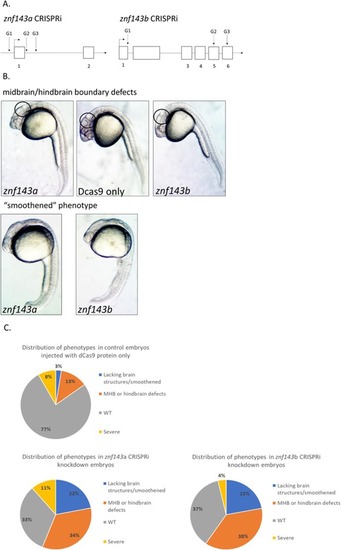

CRISPRi knockdown of either znf143a or znf143b induce brain developmental defects. a. Diagram showing targets for sgRNAs. Numbered boxes indicate positions of exons. b. One-cell zebrafish embryos were injected with sgRNA/dCas9 protein complexes to knock down znf143a, znf143b, or in control experiments with dCas9 protein only (−sgRNA) and observed at 24hpf. Representative photographs of abnormal brain phenotypes are shown, with circled regions showing the areas of most interest. c. Consistent phenotypes are grouped into classes. Severe phenotypes lacked axial development. 159 embryos were counted for the control injections lacking any sgRNAs, 132 embryos were counted for the znf143a CRISPRi injections, and 136 embryos were counted for the znf143b CRISPRi injections

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB/TL + CRISPR1-znf143a + CRISPR2-znf143a + CRISPR3-znf143a AB/TL + CRISPR1-znf143b + CRISPR2-znf143b + CRISPR3-znf143b
Knockdown Reagents:	CRISPR1-znf143a CRISPR1-znf143b CRISPR2-znf143a CRISPR2-znf143b CRISPR3-znf143a CRISPR3-znf143b
Observed In:	brain brain development hindbrain midbrain
Stage:	Prim-5
