Fig. S2

ID

ZDB-IMAGE-061110-7

Genes

ccnd1

Publication

Berndt et al., 2006 - Semaphorin 3d promotes cell proliferation and neural crest cell development downstream of TCF in the zebrafish hindbrain

All Figures

Figures for Berndt et al., 2006


Figure Caption

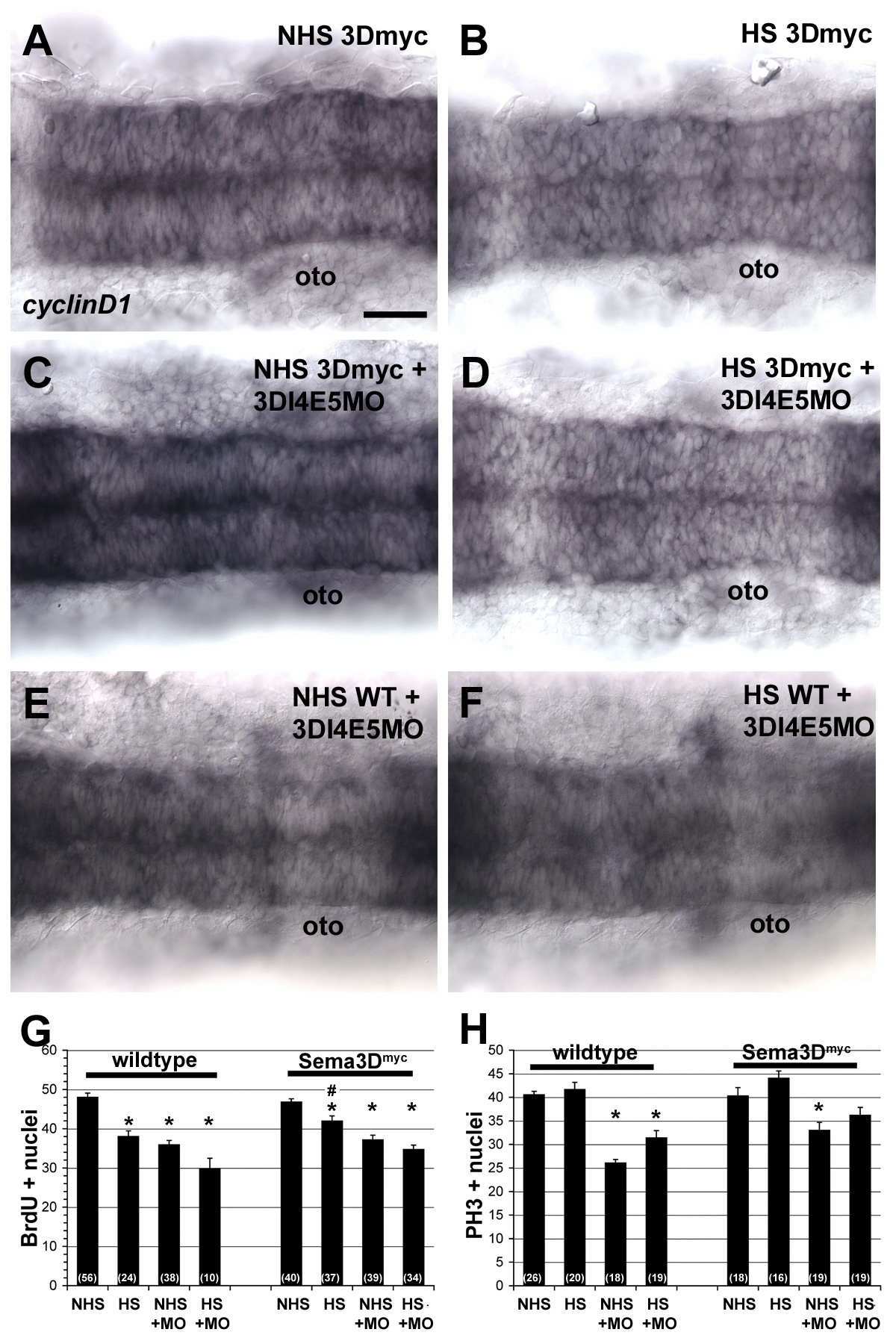

Fig. S2 Rescue of the Sema3D splice morpholino (3DI4E5MO) by Sema3D^myc overexpression. (A-F) In situ hybridization for cyclin D1 in the hindbrain at 17 hpf in Sema3D^myc transgenic embryos (A-D) or wild-type embryos (E,F) that were uninjected (A,B) or injected with 3DI4E5MO (C-F) and were either not heat-shocked (A,C,E) or heat-shocked for 1 hour at 14 hpf (B,D,F). (G,H) Quantification of the number of BrdU (I) and PH3 (J) labeled nuclei in the neuroepithelium of rhombomeres 3-5. Numbers in parentheses indicate n. *P<0.005 versus uninjected NHS, ^#P<0.03 versus wild-type HS. oto, otocyst. (A-F) Dorsal views, anterior is leftwards. Scale bars: 40 μm for A-F.

Figure Data

Expression / Labeling details
