Fig. 5

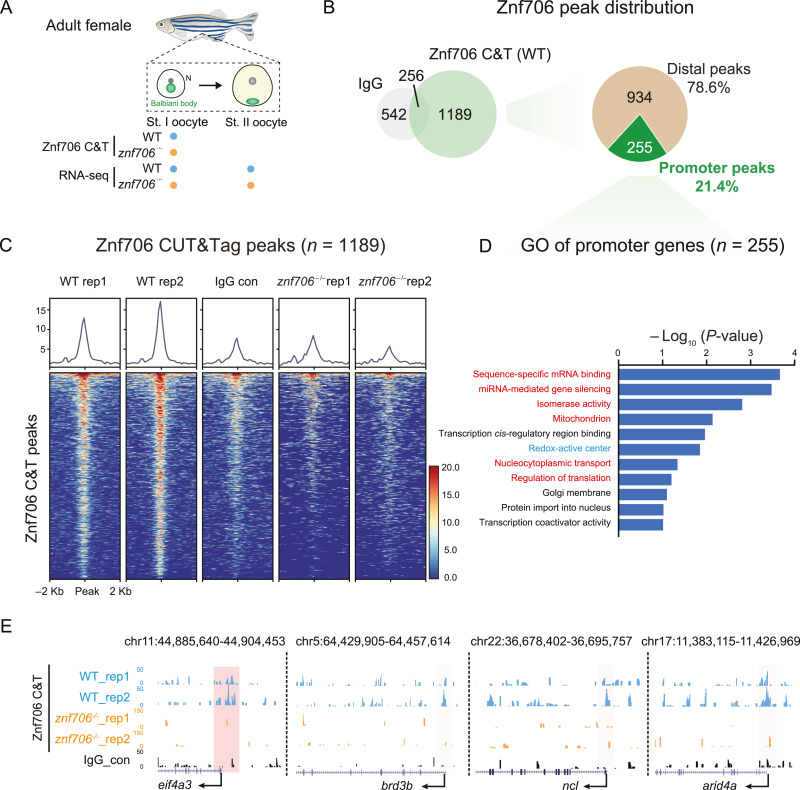

Fig. 5 CUT&Tag of Znf706 in stage I oocytes. A: Schematic showing collection of stage I oocyte for CUT&Tag of Znf706 and stage I and II oocytes for RNA-seq. B: Venn diagrams illustrating the overlap between Znf706 and IgG CUT&Tag (left) and a pie chart showing the distribution of Znf706 peaks at promoter and distal regions (right). C: Heatmap showing the Znf706 in WT and znf706−/− oocytes and IgG in WT oocytes enrichment around peak center (peak center ± 2 kb). D: Bar plot showing GO analysis of 255 genes bound by Znf706 at the promoter regions. E: UCSC Genome Browser snapshots showing Znf706 and IgG peaks at promoter regions of eif4a3, brd3b, ncl, and arid4a. Pink shadows indicated promoter regions. WT, wild-type; st., stage; C&T, CUT&Tag.
