Fig. 4

ID

ZDB-IMAGE-260127-38

Genes

Publication

Zanardini et al., 2025 - Integrated Role of Arginine Vasotocin in the Control of Spermatogenesis in Zebrafish

All Figures

Figures for Zanardini et al., 2025


Figure Caption

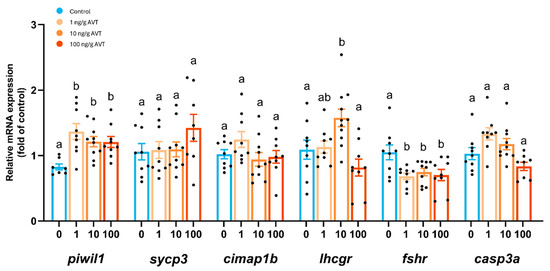

Fig. 4 Effects of long-term AVT treatment on the expression of genes involved in spermatogenesis, gonadotropin signaling, and apoptosis in adult zebrafish testis. Relative mRNA expression levels (fold change vs. control) of piwil1, sycp3, cimap1b, lhcgr, fshr, and casp3a in testes from zebrafish treated with 0, 1, 10, or 100 ng/g AVT. Gene expression was normalized to reference genes and expressed as fold change relative to the control group (0 ng/g). Bars represent mean ± SEM; individual data points are shown. Different letters indicate statistically significant differences between groups (p < 0.05). Dots represent individual data points.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
