ZFIN Image: Chen et al., 2025, Fig. 4


Figure Caption

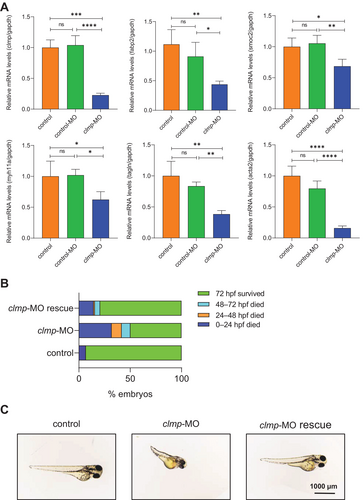

Fig. 4 Clmp knockdown decreased smooth muscle-related gene expression in Zebrafish, and clmp mRNA partly rescued the knockdown phenotype in zebrafish embryos. (A) qRT-PCR analysis of the mRNA levels of clmp, fabp2, smoc2, myh11a, tagln, and acta2 expression in zebrafish embryos of control, control-MO, and clmp-MO groups at 72 hpf (each group, n = 3–6). The expression of gapdh gene was used as an internal control. *p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001; ns, not significant. (B) The mortality rate of embryos with clmp-MO injection, clmp-MO, and clmp mRNA con-injection during different embryonic stages. (C) Gross morphology of zebrafish embryos at 72 hpf in three groups. Most embryos con-injected with clmp-MO and clmp mRNA were morphologically normal, whereas those injected showed growth defects. acta2, actin alpha 2; clmp-MO, clmp morpholino group, clmp-MO rescue group, co-injection of clmp morpholino and clmp mRNA group; control group, untreated group; control-MO, control morpholino group; Fabp2, fatty acid binding protein 2; myh11, myosin, heavy chain 11a; smoc2, SPARC-related modular calcium binding 2; tagln, transgelin.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Clin. Genet.
