ZFIN Image: Galuh et al., 2025, Figure 4


Figure Caption

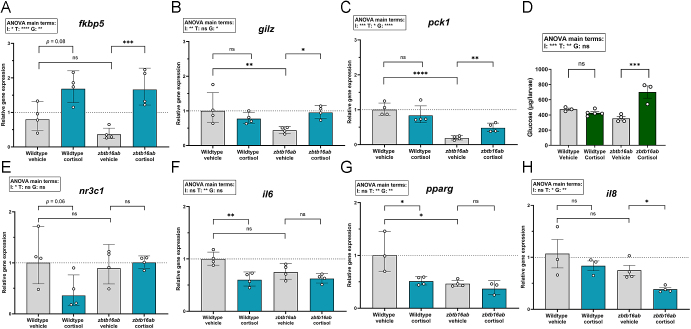

Figure 4

Modulation of GR-mediated transactivation and transrepression of genes by zbtb16ab in zebrafish larvae. Five dpf WT zebrafish larvae and zbtb16ab crispants (n = 10–30) were treated with vehicle or 5 μg/mL cortisol for 20 h. Cortisol-induced GR target genes are indicated in the first panels at the upper row: (A) fkbp5 (P = 0.0002), (B) gilz (P = 0.01), (C) pck1 (P = 0.001). (D) Total glucose levels (mean ± S.E.M) from whole-body lysates of either 5 dpf WT zebrafish larvae or zbtb16ab crispants, with increased levels in the cortisol-treated crispants (P = 0.0002). The lower row shows the relative gene expression of GR-repressive genes: (E) nr3c1, (F) il6, (G) pparg, (H) il8 (P = 0.02). The relative gene expression was normalized to actb as a housekeeping gene. Data are presented in geometric means ± geometric S.D. G: genotype, I: interaction, ns: not significant, T: treatment.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ J. Endocrinol.
