FIGURE

Fig. 8

ID

ZDB-FIG-171027-32

Publication

Jeon et al., 2015 - Seapolynol Extracted from Ecklonia cava Inhibits Adipocyte Differentiation in Vitro and Decreases Fat Accumulation in Vivo

Other Figures

Fig. 8

All Figure Page

Back to All Figure Page

Fig. 8

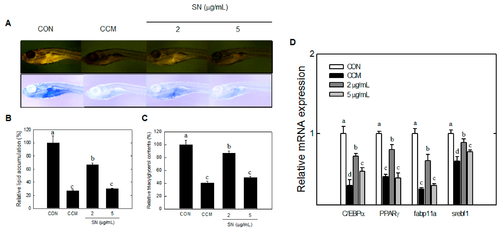

Effects of SN on lipid accumulation in zebrafish. (A) Live larvae were visualized under a fluorescence microscope, and the image color was inverted; (B) Fluorescence microscopy image were quantified by using ImageJ software; (C) Triglyceride levels in zebrafish were determined using a TG Assay Kit (Zen Bio, Inc.); (D) mRNA expression of adipogenic factors in zebrafish was quantified by qRT-PCR. CON: high fat diet, CCM: curcumin, SN: seapolynol. Data are presented as means ± SD of 20 zebrafish. All data are representative of three replicates. Means not designated by a common superscript are significantly different (p < 0.05).

Expression Data

Genes:	cebpa fabp4a pparg srebf1
Fish:	WT
Conditions:	high fat chemical treatment: curcumin, high fat
Anatomical Term:	whole organism
Stage Range:	Day 5 to Days 7-13

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Conditions:	high fat chemical treatment: curcumin, high fat
Observed In:	whole organism whole organism lipid whole organism triglyceride
Stage Range:	Day 5 to Days 7-13

Phenotype Detail
