FIGURE

Fig 4

ID

ZDB-FIG-250203-27

Publication

Li et al., 2025 - Peptidoglycan recognition protein PGRP-5 is involved in immune defence and neuro-behavioral disorders in zebrafish embryos

Other Figures

All Figure Page

Back to All Figure Page

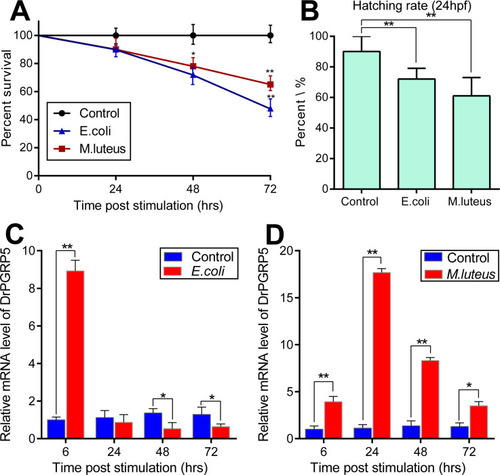

Fig 4

Zebrafish PGRP5 exhibits differential expression characteristics under different bacterial stimuli.

(A) The survival rate of zebrafish embryos at 72 hpf after Gram-negative E.coli (A) and Gram-positive M. luteus (B) challenge. (B) The hatching rate of zebrafish embryos at 24 hpf after E.coli and M. luteus challenge. (C) The temporal mRNA expression profiles of zebrafish PGRP5 in zebrafish larvae after E. coli challenge. (D) The temporal mRNA expression profiles of zebrafish PGRP5 in zebrafish larvae after M. luteus challenge. We detected the expression of PGRP5 gene under different stimuli at time points 6, 24, 48, and 72 hours, respectively. The values in each group were presented as means ± SEM (Each value contains at least four biological replicates, and each biological replicate contains three technical replicates). For all experiments, *p < 0.05; **p <0.01.

Expression Data

Gene:	pglyrp5
Fish:	AB
Conditions:	bacterial treatment by exposure to environment: Escherichia coli bacterial treatment by exposure to environment: Staphylococcus aureus
Anatomical Term:	whole organism
Stage Range:	5-9 somites to Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB
Conditions:	bacterial treatment by exposure to environment: Escherichia coli bacterial treatment by exposure to environment: Staphylococcus aureus
Observed In:	hatching whole organism
Stage Range:	Shield to Protruding-mouth

Phenotype Detail
