FIGURE

Fig 5

ID

ZDB-FIG-250203-28

Publication

Li et al., 2025 - Peptidoglycan recognition protein PGRP-5 is involved in immune defence and neuro-behavioral disorders in zebrafish embryos

Other Figures

All Figure Page

Back to All Figure Page

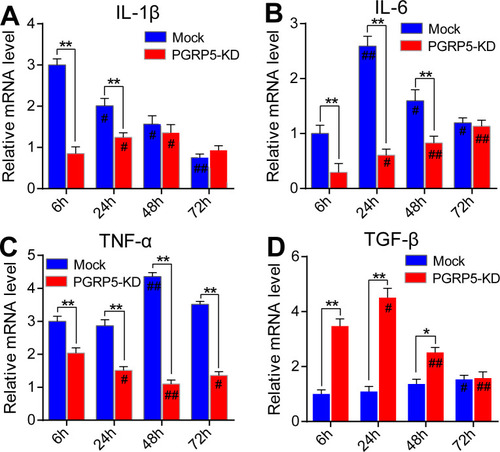

Fig 5

The pro-inflammatory cytokines were mainly inhibited but anti-inflammatory genes were significantly activated in zebrafish embryos under PGRP5-KD conditions.

(A) The relative mRNA levels of IL-1β at 6, 24, 48, and 72 hpf both in the mock and PGRP5-KD conditions. (B) The relative mRNA levels of IL-6 at 6, 24, 48, and 72 hpf both in the mock and PGRP5-KD conditions. (C) The relative mRNA levels of TNF-α at 6, 24, 48, and 72 hpf both in the mock and PGRP5-KD conditions. (D) The relative mRNA levels of TGF-β at 6, 24, 48, and 72 hpf both in the mock and PGRP5-KD conditions. The values in each group were presented as means ± SEM (Each value contains at least four biological replicates, and each biological replicate contains three technical replicates). For all experiments, *p < 0.05 and **p <0 .01 for intra-group comparison; #p < 0.05 and ##p <0 .01 for inter-group comparison.

Expression Data

Genes:	il1b il6 tgfb1a tnfa
Fish:	AB AB + MO2-pglyrp5
Knockdown Reagent:	MO2-pglyrp5
Anatomical Term:	whole organism
Stage Range:	5-9 somites to Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB + MO2-pglyrp5
Knockdown Reagent:	MO2-pglyrp5
Observed In:	whole organism
Stage Range:	5-9 somites to Protruding-mouth

Phenotype Detail
