FIGURE

Fig 8

ID
ZDB-FIG-260613-18
Publication
Lubash et al., 2026 - RNA Polymerase III subunit Polr3a is required for craniofacial cartilage and bone development in zebrafish
Other Figures
All Figure Page
Back to All Figure Page

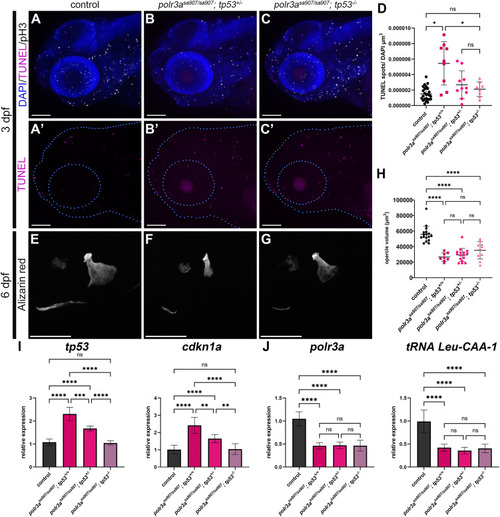

Fig 8

Genetic inhibition of tp53 reduces cell death and leads to slight improvements in polr3asa907/sa907 zebrafish.
(A-D) TUNEL (magenta) and pH3 (white) staining at 3 dpf. Quantification reveals a decrease in global cell death (D; *p = 0.013 control vs polr3asa907/sa907; tp53+/+; *p = 0.038 polr3asa907/sa907; tp53+/+ vs. polr3asa907/sa907; tp53-/-), but no change in proliferation (see S20 Fig). n = 25 controls, n = 9 polr3asa907/sa907; tp53+/+, n = 10 polr3asa907/sa907; tp53+/-, n = 8 polr3asa907/sa907; tp53-/-.(E-H) Alizarin red stain of the opercle at 6 dpf shows slight improvements in morphology, but no statistically significant improvement in the overall volume of the opercle in polr3asa907/sa907; tp53-/- zebrafish (H; ****p < 0.0001). n = 17 controls, n = 8 polr3asa907/sa907; tp53+/+, n = 16 polr3asa907/sa907; tp53+/-, n = 10 polr3asa907/sa907; tp53-/-. Scale bar = 100 µm. (I) qRT-PCR for tp53 and cdkn1a at 3 dpf demonstrates a dosage-dependent reduction in expression in polr3asa907/sa907 zebrafish based on tp53 status. Expression levels of tp53 and cdkn1a in polr3asa907/sa907; tp53-/- zebrafish are not significantly different from controls. Adjusted p-values: **p < 0.005, ***p = 0.0007, ****p < 0.0001. (J) qRT-PCR for polr3a and tRNA-Leu-CAA-1-1 demonstrate that expression levels of these genes remain reduced in polr3asa907/sa907 zebrafish regardless of tp53 status. Adjusted p-values: ****p < 0.0001.

Expression Data
Genes:
Antibody:
Fish:
Anatomical Terms:
Stage: Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Observed In:
Stage Range: Protruding-mouth to Day 6

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS Genet.
