FIGURE

Fig. 1

ID

ZDB-FIG-260123-1

Publication

Asaoka et al., 2025 - LOXHD1b knockout alters swimming behavior in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1

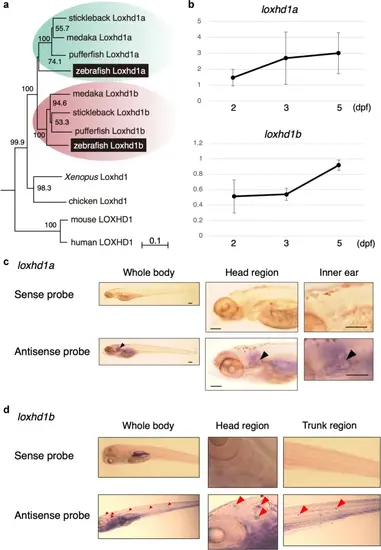

(a) Phylogenetic tree of LOXHD1 in zebrafish, medaka, pufferfish, stickleback, Xenopus, chicken, mouse, and human. The number at each node indicates the bootstrap probability (%). Scale bar, 0.1 substitutions per site. (b) Temporal analysis of LOXHD1a and LOXHD1b expression. Expression levels of LOXHD1a and LOXHD1b at 2, 3, and 5 dpf were measured by real-time qPCR analysis. The error bars show the standard deviation. (c, d) Spatial analysis of LOXHD1a and LOXHD1b expression in WT zebrafish by in situ hybridization of sense and anti-sense probes. Scale bars are 100 μm. (c) The ear vesicle was labelled with the LOXHD1a antisense RNA probe (black arrowhead). (d) The lateral line primordia were labelled by the LOXHD1b antisense RNA probe (red arrowhead)

Expression Data

Genes:	loxhd1a loxhd1b
Fish:	AB
Anatomical Terms:	neuromast otic vesicle
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cell Tissue Res.
