FIGURE

Fig. 3

ID

ZDB-FIG-260123-3

Publication

Asaoka et al., 2025 - LOXHD1b knockout alters swimming behavior in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

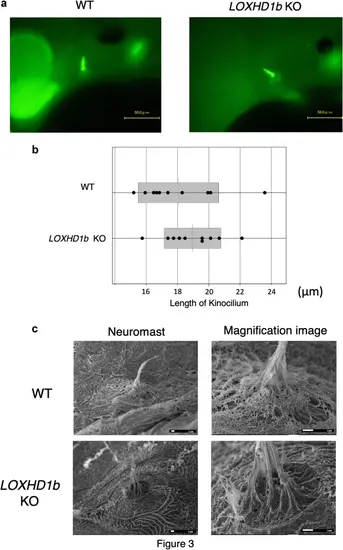

(a) Immunostaining of sensory hair in neuromasts of WT zebrafish and LOXHD1b KO larvae. The sensory hairs in neuromasts of WT and KO zebrafish were immunostained with anti-parvalbumin antibody. (b) Quantitative analysis of the hair cell length. The length of sensory hair in the SO2 neuromast was measured, and there was no significant difference in the length of sensory hair between the WT and KO zebrafish (P = 0.3765, t-test). (c) Electron microscopy. The stereocilia and kinocilia in neuromasts were clearly visible. However, no substantial differences in stereocilia and kinocilium morphology, such as length and thickness, were observed between WT and KO zebrafish. Scale bars = 50 μm for A, 1 μm for C

Expression Data

Antibody:	Ab1-pvalb
Fish:	AB loxhd1b^yg1/yg1 (AB)
Anatomical Term:	neuromast hair cell
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	loxhd1b^yg1/yg1 (AB)
Observed In:	neuromast hair cell neuromast hair cell kinocilium neuromast hair cell stereocilium
Stage:	Day 5

Phenotype Detail
