Figure 6.

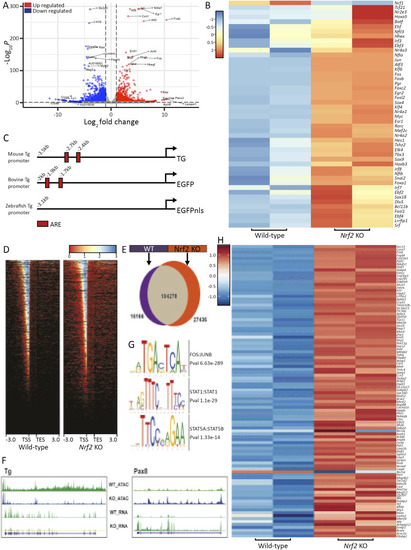

Transcriptomic and chromatin accessibility profile comparison between mESC-derived Nrf2 WT and KO organoids.
