FIGURE

Fig. 8

ID

ZDB-FIG-250204-8

Publication

Xiao et al., 2025 - Hsf1 is essential for proteotoxic stress response in smyd1b-deficient embryos and fish survival under heat shock

Other Figures

All Figure Page

Back to All Figure Page

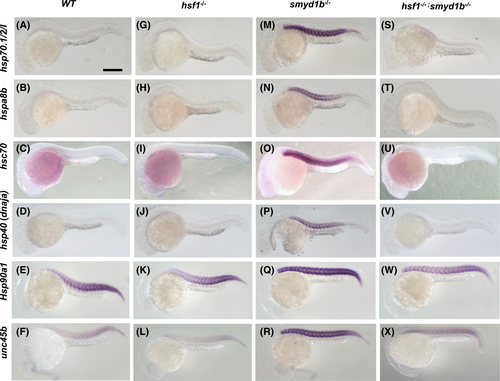

Fig. 8

Hsf1 is required for the muscle-specific upregulation of hsp chaperone and cochaperone gene expression in smyd1b mutant embryos. Expression of three hsp70 genes (hsp70.1/2/l, hspa8b, and hsc70), hsp40, hsp90?1 and unc45b mRNAs was analyzed in the WT control (A?F), hsf1?/? mutants (G?L), smyd1b?/? mutants (M?R) and smyd1b?/?; hsf1?/? double-mutant (S?X) embryos. No significant difference is visible between the WT (A-F) and hsf1?/? mutant (G?L) embryos. In contrast, loss of smyd1b dramatically upregulated the hsp chaperone and cochaperone gene expression in muscle cells of zebrafish embryos at 24 hpf (M?R). However, this muscle-specific upregulation was blocked in the smyd1b?/?; hsf1?/? double-mutant embryos (S?X). Scale bar = 100 ?m.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ FASEB J.
